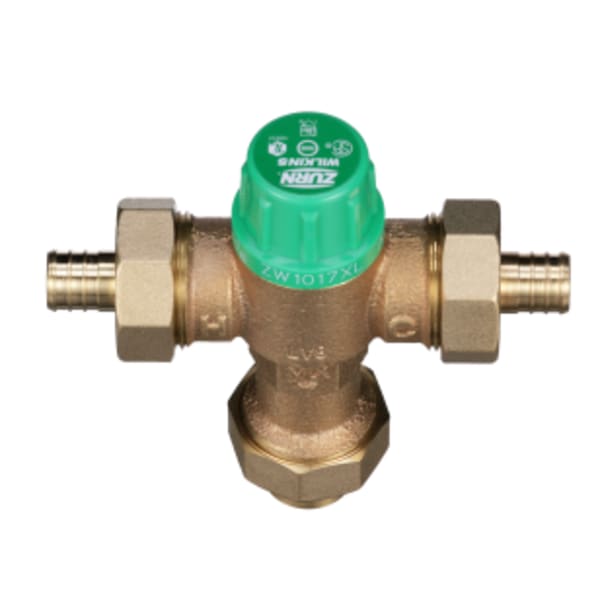

The 3/4" ZW1017XL2PEX1C Aqua-Gard® Thermostatic Mixing Valve with two PEX and one copper sweat tailpieces and union nuts is utilized in both residential and most light commercial point-of-use installations to mix hot and cold water and reduce the hot water temperature in the distribution system to 122°F (50°C) or less. The ZW1017XL valve is suitable for installation in areas inaccessible to end users, and is recommended to be installed with a shut-off valve and thermometer in the tempered water line for safety and accuracy in conjunction with the ASSE 1070 device. Included with both inlet strainers and check valves, the ZW1017XL can also be installed in any position.

• Installs at the potable water heat source and can be oriented either vertically or horizontally for added versatility
• Efficiently reduces hot water temperature to 122°F or less
• High protection from scalding injuries
• Check valves and inlet strainers included for added convenience
• Low-lead law compliant
• ASSE® Listed 1017
• IAPMO® Listed
• CSA® Certified
• Meets the requirements of NSF/ANSI 61-9
• Installs at the potable water heat source and can be oriented either vertically or horizontally for added versatility
