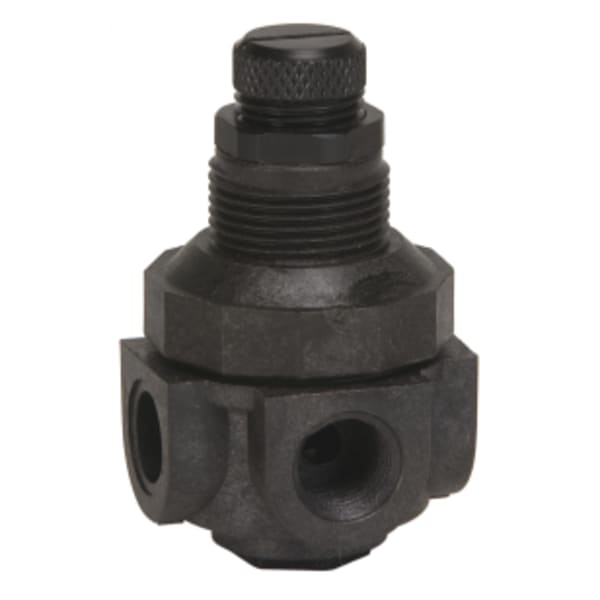

This 1/4" miniature water pressure regulator is compact and lightweight with a high flow capacity. It is used in general purpose and OEM applications where a small economical package is required. It is also suitable for deionized water applications. It has a balanced piston design for applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction, four NPT female connections, two NPT pipe plugs, rubber disc, diaphragm, seals of FDA grade elastomers, quick disconnect, and stainless steel internal metal components. The plugs allow configurations of straight through to outlet, 90 degree to outlet, or use of a gauge. The reduced pressure range is 0 to 125 psi (0 to 8.79 bar) and the temperature range is 33 to 150 degrees F (0.5 to 66 degrees C).

• Corrosion resistant thermoplastic body
• All internal rubber components such as disc, diaphragm and seals are all FDA grade elastomers
• All internal metal components in contact with fluid are of 300 series stainless steel
• Quick disconnect for plastic tubing
• Bottom clean out plug for service
• Temperature range is 33 F to 150 degrees F (0.5 C to 66 degrees C)
• Maximum"let pressure is 300 psi (21 bar)
