Combination Control

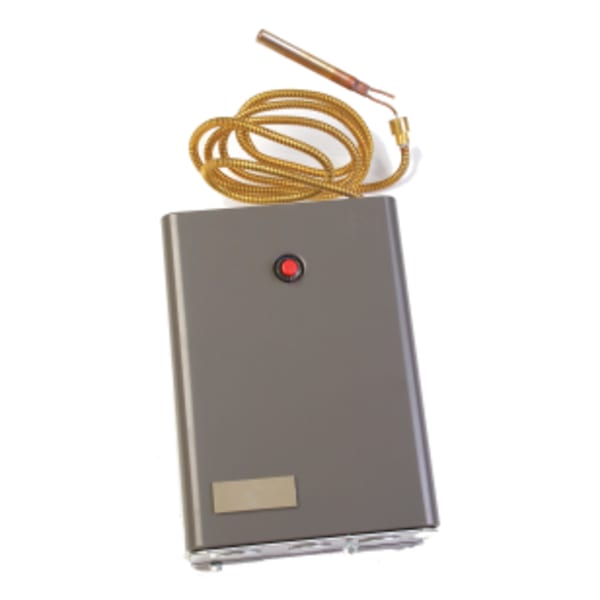

The R8182 from Resideo is a combination Protectorelay® intermittent ignition oil burner primary and immersion type Aquastat® controller for oil-fired, hydronic heating systems. Depending on the model, these single unit devices provide high limit, low limit, and circulator control. All models use a 24V thermostat and C554A cadmium sulfide flame detector.

• Use in intermittent ignition applications.
• Capable of zone control with zone valves.
• Circulator zone control with ZC and ZR terminals on R8182D,E,H,J. 8
• *Flame failure during the running cycle results in a 45 second attempt to restart. If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
